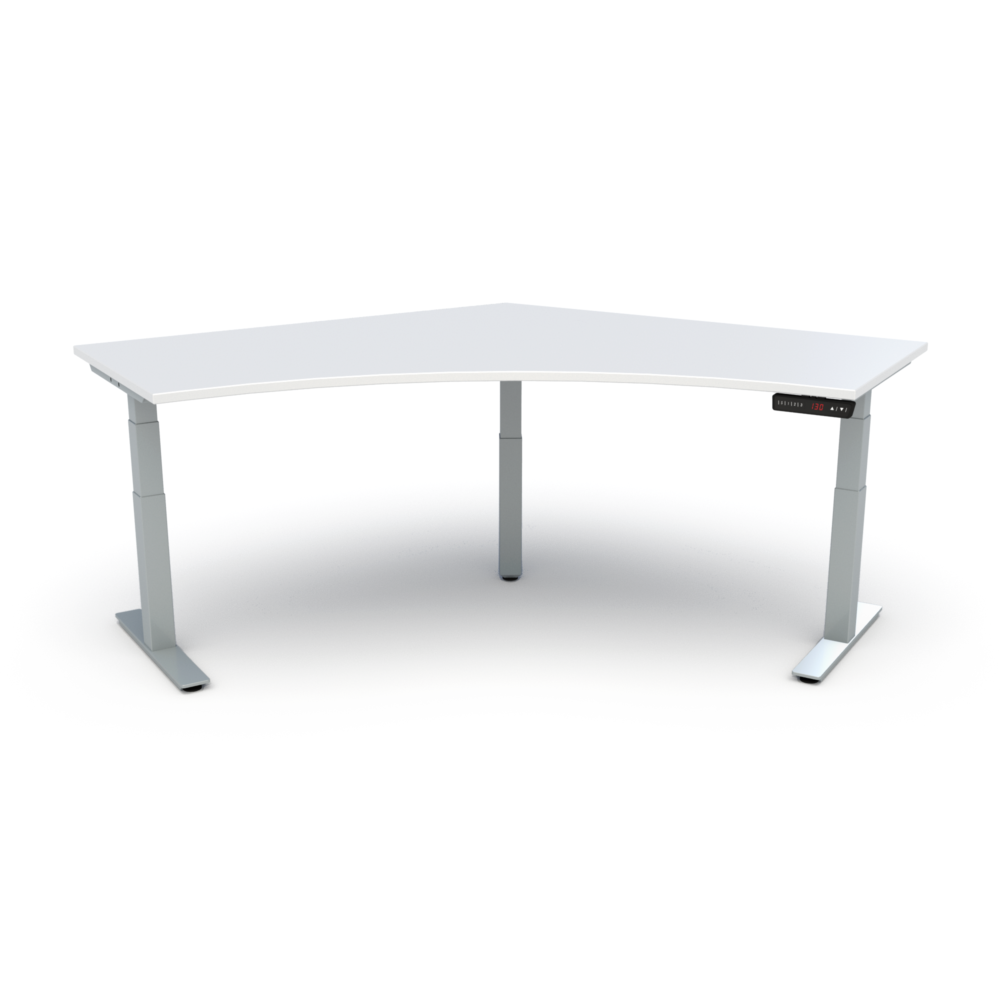

HiLo 3-Leg Base in White with 120 Degree Worksurface
HiLo 3-Leg Base in Silver with 120 Degree Worksurface | HiLo Hub

HiLo Table

Compel’s HiLo Height Adjustable Bases come in both 2-leg and 3-leg configurations, accommodate a wide range of worksurfaces (sold separately) and are available in three base colors.

HiLo 2-leg bases feature Quick Connect top frame assembly, which delivers 5x faster installation compared to traditional construction. It also facilitates easy reconfiguration with one simple step. Check out the assembly video here.

FEATURES

ALL MODELS

  • Leg State:  3-Stage
  • Speed:  36mm / 1.4″ per second
  • Stroke:  662mm / 26.0″
  • Leg Size:  70 x 70mm / 2.75″ x 2.75″
  • Height Range: BIFMA G1:  550-1212mm / 21.7-47.7″
  • Column Foot Connection:  T-Leg
  • Foot Length:  600mm / 23.6″
  • Foot Structure:  Solid Steel
  • Remote:  6-Button Programmable
  • Power Cable:   2.75M / 9′
  • Remote Cable:  0.5M / 1.75′

MODEL SPECIFIC

  • 2-Leg Midsize
    • Weight Capacity:  120kg / 264lbs
    • Top Frame Range: 39.4-51.2″
    • Worksurface Range:  48-60″ W x 24-30″ D
  • 2-Leg Extended
    • Weight Capacity:  120kg / 264lbs
    • Top Frame Range:  51.2-74.8″
    • Worksurface Range: 60-72″ W x 24-30″ D
  • 3-Leg
    • Weight Capacity: 150kg / 331lbs
    • Desk Worksurface:  60-72″ W x 24-30″ D”
    • Return Worksurface: 42-48″ W x 24-30″ D

ASSEMBLY INSTRUCTIONS

OPTIONS

  • 2 or 3 Legs
  • 48, 60 or 72″ Wide x 24″ to 30″ Deep
  • Vertebrae Cable Management
  • Trough Wire Management
  • HiLo Hub with Power & Screen Options

FINISHES

  • BASE: Black, Silver, or White
  • WORKSURFACE:  White, Grey Ash, American Cherry or Café
  • Made-to-Order Surfaces Available in any Wilsonart or Formica Laminate
